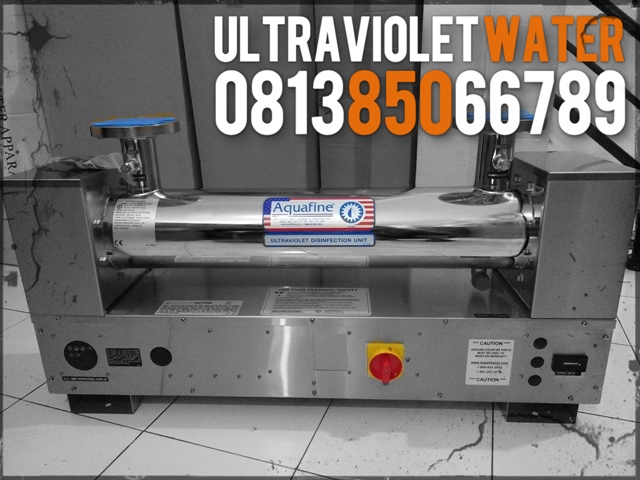

The CSL series is a compact, totally enclosed unit, which incorporates a UV treatment chamber with an electrical cabinet base containing all electrical components and instrumentation.These one-piece UV models are engineered for indoor installations and controlled operating environments. The CSL series is used in laboratory, hospital and hotel installations, as well as cosmetic, pharmaceutical and semiconductor manufacturing processes. Stainless baffles are d in the treatment chamber to induce turbulence and prevent channeling, maximizing the exposure toultraviolet radiation.
Product Description
Weight (lbs): 120
Total Amps.: 3.2
Total Watts: 396Standard Features:
99% Plus Bacterial Reduction
Operating Pressure - 120 psig
Chamber - 316 Stainless Steel
Chamber - Passivated and Electropolished
Integral Ballast Enclosure: 304 Stainless Steel
LED UV Lamp Operating Display Panel
Running Time Meter: 99,999 Hours. - Non resettable
Socket Lok™
Mating flanges are NOT supplied with units.
Standard water temperature range 35 degrees F to 100 degrees F (2 degrees C to 38 degrees C)
Socket Lok™ is a registerd trademark of Aquafine Corporation.
Optional Features
S-254 UV Optical Sensor
T-120 Temperature Safety Control
High Water Temperature Models
High Pressure Models (to 150 PSIG)
Sanitary Fittings
Lamp Out Alert
UV Aquafine CSL-6R
Optional Monitoring Package (See Details Below)
Optional Monitoring Package Details:
An integrated NIST traceable (optional) UV and temperature monitoring systemwill accurately monitor UV intensity and process water temperature of yourexisting UV treatment equipment from Aquafine. The new design improvesreliability and performance accuracy in one state-of-the-art monitoring technologysystem. Component cost savings and improved liability protection will be some ofthe key benefits you will have with this state-of-the-art monitoring system. Thedetector employs a Gallium Nitride (GaN) photodiode and a semiconductortemperature sensor in a single package, along with its on-board electronics forremote and local operation features:
Detector: UV and temperature sensors in a single housing
Optional NIST-traceable UV sensor calibration with certificate upon request
No optical filters, no degradation
Withstands non-operating temperatures of 250°F
121°C for steam sterilization at a maximum pressure of 250psi (17.2 bar)
Complete on-board electronics for UV and temperature
Absolute and percent UV readout options
Detector Cable: Water-resistant axial connector and cabling
No diffuser, therefore no UV solarization
Temperature sensor and controller does not calibration
Detector can be used for UV Monitoring Station and Aqualogic 2000™ system.
