Sun Central Continental CPHL60-075-30 Cartridge Filter 75 micron 30”

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik

TECHNICAL SPECIFICATIONS

·         Product Code : CPHL

·         Media : Polypropylene Melt Blown

·         Description : Heavy Duty Glaze with PP Core

·         Length : 30”

·         Micron : 75 Absolute

·         Change – out Pressure Diff. : 0.25 – 0.45 MPa

·         Filtration Type : Sediment Filter Cartridge

·         Max. Operating Temperature : 80oC @ 0.15MPa

PFI PP HL PM ML PS PX PA Melt Blown Filter Cartridge

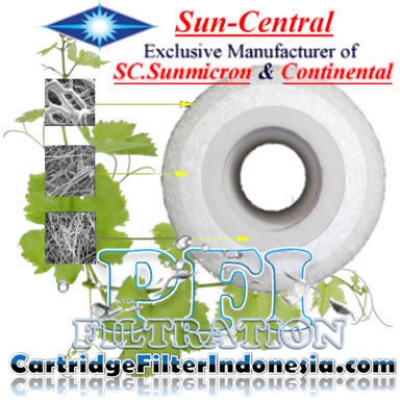

PFI Melt Blown Filter Cartridge is fusing and intertwined of polypropylene resin without any chemical glues.The cartridges are glued at random to form 3D micro pore which will make the cartridge 3 layers with fine fibers in surface and coarse fibers and deep filtration. As the fiber and density form high filtration rating and pollutants holding capacity on diameter of filter cartridge, low pressure drop, gradual changing deep filtration structure with loose outside and close inner, strong pollutants holding capacity, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.

Sun Central Continental CPHL60-075-30 Cartridge Filter 75 micron 30”

Applications

● Drinking Water Treatment        ● Electronic       ● Industrial Water Treatment
● Plating                                           ● Chemicals, solvents

Features

·         Three layers structure cartridge offers high dirt holding    capacity,longerservice life

·         Formed by thermal bond without using any binders and adhesives.

·         100% Pure Polypropylene will not cause any pollution to water

·         Wide Chemical compatibility

·         Groove design to extend the filtration surface area.

·         All kinds of adaptors are available.

·         FDA compliance material

Specifications

Dimensions:

·         Outside Diameter: 63mm, 110mm or up to customers’ request

·         Inside Diameter: 28mm,30mm

·         Length: 9.75”,9.87” 10”, 20”, 30”, 40”

Material of Construction:

·         Filter media: PP

·         End caps: PP

·         Cores: PP

Gaskets/O-ring: Silicone, EPDM, NBR, Viton
