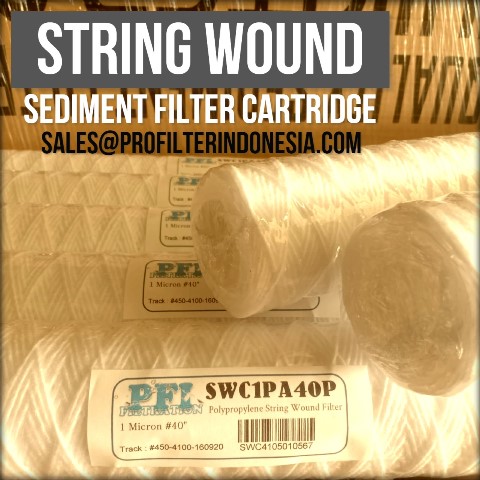

String Wound Filter Cartridges 1 micron
Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik
PFI String Wound Filter Cartridges are manufactured by computer modeling process which optimizes the filter cartridges geometrically and maximizes the use of cartridge surface area by the diamond-shaped depth filtration cones. Enhanced graded density design offers high flow rate, low pressure drop and improved dirt holding capacity. Several filter media are available in PFI’s SW series, playing more effective and efficient solutions in different applications and processes.
· Continuous strand winding process provides consistent performances of high dirt holding capacity, long service and high flow rate.
· Numerous filter media provide excellent chemical compatibility for different applications.
· No odor, no foaming and no media migration.
· Computer programming capability optimizes the filter cartridge geometrically and maximizes the use of surface area.
Applications
Plating Solutions, Pre RO, Chemicals, Petrochemical Process, Food & Beverage, Electronics
Specifications
|
Filter Media |
Polypropylene, Bleached Cotton, Glass Fiber |
|
Micron Rating |
1 μm |
|
Core Material |
Polypropylene, SUS304, SUS316 |
|
Inside Diameter |
1.1"(28mm), 1.2"(30mm) |
|
Outside Diameter |
2.4"(61mm), 2.5"(63mm), 4.5"(115mm) |
Operation Data
|
Maximum Operating Temperature |
Polypropylene : 90oC (200oF) |
|
|
Bleached Cotton with SUS Core : 150oC (300oF) |
|
|
Glass Fiber with SUS Core : 400oC (750oF) |
|
Maximum Differential Pressure |
2.7 bar at 27oC (50 psi at 80oF) |
|
|
1.4 bar at 60oC (20 psi at 140oF) |
|
|
0.7 bar at 82oC (10 psi at 180oF) |
|
Recommended Change Out Differential Pressure |
1 bar (14 psi) |
String Wound Filter Cartridge Introduction:
String wound filter cartridges resembles the structure of porous outside and dense inside. Using specific technique the fiber yarn is tightly wound on porous core which contributes to good filtration result. It can effectively filter the impurities in the fluid, suspended substances, for instance, rusts, particles etc. Porosity string wound filter cartridge is an up-model products made with current international advanced technology. Advanced winding technique helps to rectify the defects of former products including large resistance and short service life etc. and reduce the utilization cost.
String Wound cartridges provide true depth filtration utilizing hundreds of tapered filtering passages of controlled size together shape. Each layer of roving contributes to true depth filtration by trapping its share of particles. Wound cartridges offer a gradual pressure Increase during cartridge life Versus surface-type media that have an abrupt flow cutoff when loaded. In addition, the Irregular outer layer reduces Surface blinding, assuring both longer cartridge life and full Cartridge utilization.
PFI Process Filtration has been a leader in filter media innovation and performance. PFI ‘s ISO9002 approved factory manufactures for wound cartridges, offering superior quality along with technical, engineering and marketing support.
PFI string wound cartridges covers a wide application area such as Edible Oils, Concentrated Alkalis, Dilute Acids & Alkalis, Mineral Acids, Organic Acids& Solvents, HTF, Oxidizing Agents, Petroleum Oils, Photo Solutions, Potable Liquids, water, Amines, etc
Technical Data:
· Filter Fineness (nominal): 0.5 -1-3-5-10-25-50-75-100-150 μm
· Length: 5" - 40"
· Inside Diameter: 28 mm
· Outside Diameter: 62 mm
· Max. Working Temperature: 1
· 80°C (Polypropylene)
· 160°C (Cotton)
· 400°C (Glass fiber)
· Max. Differential Pressure: 2.5 bar / 30°C
