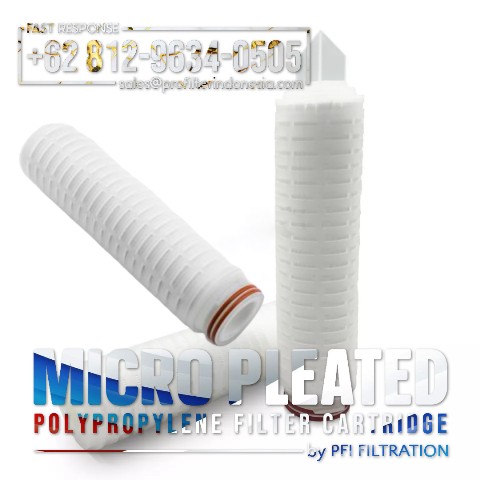

SOE Pleated Filter Cartridge
Kami adalah importir distributor agen dan supplier SOE Pleated Filter Cartridge terlengkap menyediakan berbagai kebutuhan spare part filter untuk keperluan industry dengan kualitas dan harga terbaik.
PFI Filtration pleated filter cartridges are one of our most popular solutions for achieving exceptional filtration performance in Industrial, Life Sciences and Water applications.
Overview Micro Pleated Filter Cartridge
The pleated depth media is encapsulated in an integral, continuous-length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical inertness. Offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention) grades in all end configurations. Manufactured in a clean-room environment to maintain high standards of purity and cleanliness. Commonly used in food/beverage and chemical applications as a final filter or prefiltration stage.
Profilter Indonesia Filter polypropylene pleated cartridges’ filter media provides a high area, 100% polypropylene element for removal of fine or coarse particulate from fluid streams. The pleated depth media is encapsulated in an integral, continuous length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical inertness. Moreover it is offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention) grades in all end configurations.
Specification
Construction Materials
- Filtration Media: Polypropylene
- Support Media: Polypropylene
- End Caps: Polypropylene
- Center Core: Polypropylene
- Outer Support Cage: Polypropylene
- O-Rings/Gaskets: Buna, EPDM, Silicone, Teflon® Encapsulated Viton®, Viton®, Teflon® Encapsulated Silicone
Operating Conditions
- Change Out ΔP (recommended) 35 PSID
- Temperature (max) 176oF (80oC)
- Differential Pressure (max) 60 PSID (4.1 bar) at 68o˚F (20oC)
Note: Stainless steel insert option d for all cartridges being hot water sanitized or steam sterilized
Sanitization/Sterilization
- Filtered Hot Water: 80oC for 30 min.
- Steam Sterilization: 121 ̊C for 30 min., multiple cycles
- Chemicals: Cartridges are compatible with most chemical sanitizing agents.
Note: Stainless steel insert option d for all cartridges being hot water sanitized or steam sterilized.
Dimensions
- Length: 10 to 40 inches ( 25.4 to 101.6 cm)
- Outside Diameter: 2.70 inches
- Micron size: 0,2 µm until 10 µm
Applications
- Food & Beverage
- Deionized Water
- O. Pre-Filtration
- Process Water
- Fine Chemicals
- Plating Chemicals
- Wastewater
- Pharmaceutical Prefiltration
Untuk informasi lebih lanjut perihal produk dan penawaran harga SOE Pleated Filter Cartridge Polypropylene silahkan hubungi CS kantor kami.
