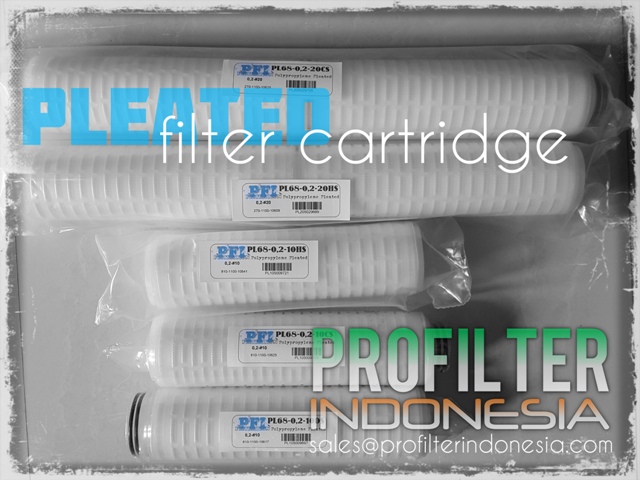

Single Open Ended Pleated Filter Cartridge

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik

Features

·         Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.

·         Pleated design increased the filtration area.

·         low pressure drop, long service life

·         Full range of removal ratings

Applications

·         Post-Filter for drinking water treatment

·         Chemical Processing

·         Food & Beverage

·         Semiconductor

·         Pharmaceuticals

·         Oil Industry

Specifications

·         Micron ratings : 0.1μm, 0.22μm, 0.45μm, 1μm, 2μm, 3μm

·         Length :  10", 20", 30", 40"

·         Outside diameter : 69mm

·         End Cap : 222/Flat , 222/Fin, 226/Flat, 226/Fin, DOE

·         Max. Operating Temperature : 80^oC @1 bar,support adaptors are recommended for temperature exceeds 50 ^oC

·         Maximum operating differential pressure : 4.0bar ,normal temperature

·         Maximum operating differential pressure (reverse direction): 2.0bar normal temperature

·         Sterilization temperature time :  5 times, 20 Minute cycles at 120 ^oC

PFI polypropylene pleated filter cartridges is constructed of three polypropylene melt-blown superfine fiber membranes with differed fiber micron, hot spun-melt in the inner & outer polypropylene sheath after pleated and integrated. The filtration area is more than 10 times larger than normal standard depth filter cartridge. When liquid fluctuates, the membrane will cause no influence to removal rating. This is a fixed type of filter cartridge with better depth filtration stability.
Except PP pleated cartridges, PFI also provide other materials s Polyether-sulfone, PTFE and PVDF pleated cartridges. Generally, the material of inner & outer sheath is material of polypropylene. We also offer totally PTFE construction for some critical application

Untuk permintaan penawaran silahkan hubungi

PT PROFILTER INDONESIA

Ruko Blok G/54 – Gudang A/01

Jl.Canadian Broadway

Kawasan Pergudangan Commpark – Kotawisata – Cibubur

Mobile : 081385066789

Email : sales@profilterindonesia.com
