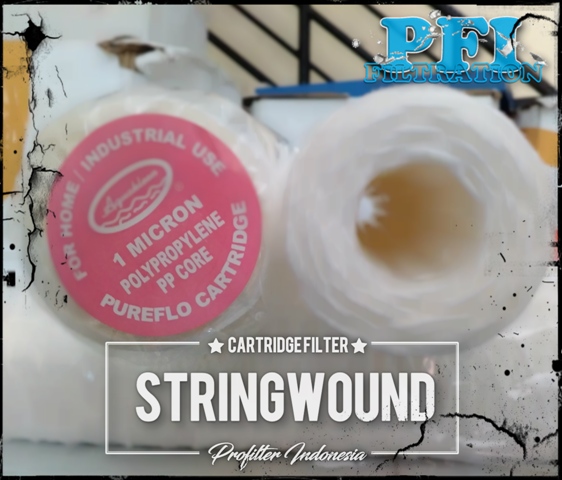

Pureflo P1-20PP Filter Cartridge Wound 1 micron 20 inch
PFI Filtration hadir sebagai importir dan stockiest Pureflo P1-20PP Filter Cartridge Wound 1 micron 20 inch terlengkap untuk keperluan industrial project water filtration
Kami Juga menyediakan berbagai spare part water treatment lainnya seperti housing Filter cartridge, bag filter housing dan ro membrane.
Deskripsi Pureflo P1-20PP Filter Cartridge Wound
Pureflo & PFI string wound filter cartridges are available with polypropylene or cotton materials wound onto polypropylene, 304 stainless steel or tinned steel cores. The cartridges can be used ( in one combination of materials or another ) in most areas chemical compatibility is of concern. Special materials are available for high temperature and our specific applications. Food grade product (FDA PP Fibre) is always available ex-stock. Activated carbon cartridges remove unpleasant tastes and odors.
Kelebihan Filter Cartridge PFI & Pureflo
PFI Watermaker and Pureflo filter cartridges are manufactured with an interlocking weave (diagonally wound) which provides efficient and cost effective filter cartridges. Pureflo wound depth cartridges offer a gradual pressure increase over cartridge life versus surface media that have an abrupt flow cut-off when loaded. The larger particles are trapped at the surface of the cartridges and build up a pre-cake, whilst the smaller particles are trapped within the cartridges filter as they go down the 'tortuous path' created by the wound pattern which varies with each micron rating.
Cartridges are individually shrink wrapped in a polyethylene tube which is treated to minimise static
build-up. The cartridges are then packed into cardboard cartons.
Spesifikasi Cartridge Filter Stringwound
Length Size : 10 – 50” Long
Inner Diameter : 28 mm
Outer Diameter : 60 – 62 mm
Micron Rating : 1 – 150 µ
Media Material : Polypropylene / Cotton / Glass Fiber
Center Core : Polypropylene or Non Core
Initial ΔP (psi)@ Flow Rate (gpm) : 0.6 psi @ 5 gpm (<0.1 bar @ 19 Lpm)
Max. Temperature Rating : 70 – 90oC
Untuk informasi lengkap tentang produk stock dan harga Pureflo P1-20PP Filter Cartridge Wound 1 micron 20 inch silahkan hubungi kantor kami :
