PFI PL Series Polypropylene Pleated Filter Cartridge
Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik

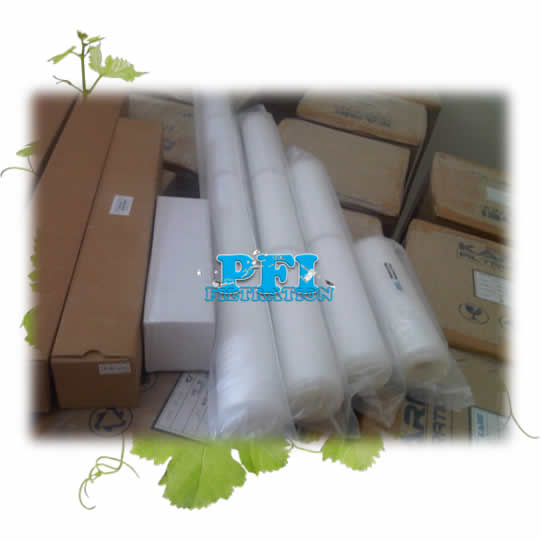

PFI PL Series Polypropylene Pleated Filter Cartridge
Polypropylene filter cartridges are precisely manufactured for use in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment & other demanding process industries. Polypropylene Pleated cartridges use the very latest gradient density micro fiber media technology to provide a combination of excellent micro ratings, high flow rates and high contaminant holding capacities. A special combination of polypropylene media with variation in the fiber diameter has created a gradient density matrix, ranging from open on the outside to finer on the inside. Thereby providing a filter with in filter, which considerably increases contamination holding capacity & throughputs. All components used in the manufacture are biologically safe, chemically inert and meet GMP and other international quality ments. Polypropylene offers an extremely broad chemical compatibility making it suitable for many applications.
Features
All Polypropylene Construction
Absolute & Nominal Efficiency
0.22 to 0.45 Micron Ratings
Gradient Density Micron Fiber Media
High Surface Area more than 0.5 m2
Robust Outer Cage
Biologically Safe
Non Fibber Migration
Thermally Welded Construction
FDA Approved Filters
End connections to fit all standard housings
Technical Specifications
Sizes
10", 20", 30", 40" Length
Micron Rating
0.22 - 0.45 Micron
Outer Diameter
70 mm
Inner Diameter
28 mm
Maximum Differential Pressure(25°C)
Positive direction: 0.42Mpa
Reverse direction: 0.21Mpa
Applicable PH value
3 - 7.5
Working Temperature & Differential Pressure
≤80°C(Differential Pressure:0.21 Mpa)
Construction
Filter Media : PP (Polypropylene) Membrane
Support Media : Polypropylene Fiber
Inner Core : High Strength Polypropylene
Outer Core : High Strength polypropylene
End Caps : High Strength Polypropylene
O Ring / Gaskets : EPDM / Silicone / Fl Rubber
Applications
Fine Chemicals and Pharmaceuticals
D.I. Water
R.O. Pre filtration
Biological Fluids
Oral Drugs
Ophthalmic Liquids
Photographic Film & Paper
Anti-Halation Coatings
Developer Chemicals
Emulsions
Gelatins
Beverages
Wine
Alcohols
Fruit Juice
Beer
De-ionized Water Prefiltration Photoresists
Magnetic tapes Metal Oxide Dispersions
Premix Resins Solvents
Tape Coatings
