HFCP-A25-40E High Flow Filter Cartridge

PFI Watermaker adalah importir distributor agen dan supplier HFCP-A25-40E High Flow Filter Cartridge jenis cartridge filter yang dirancang khusus untuk mengatasi aliran tinggi dan meningkatkan kapasitas filtrasi. Cartridge ini memiliki desain lipat yang memungkinkan area permukaan filtrasi yang lebih besar dibandingkan dengan cartridge filter tradisional

Produk kami juga memiliki berbagai macam jenis filter mulai dari RO membrane , filter cartridge, housing bag filter cartridge hingga segala jenis spare part pendukung water treatment lainnya.

Penjelasan High Flow Filter Cartridge HFCP

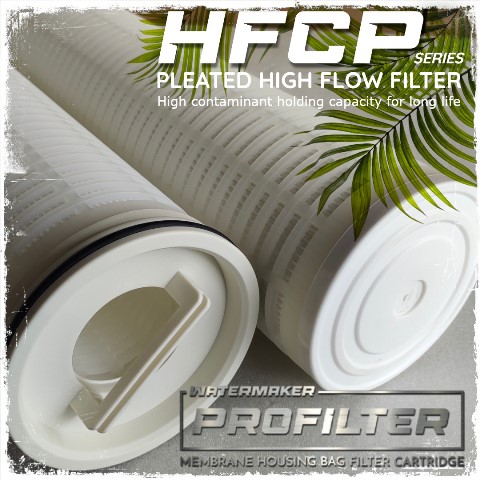

PFI HFCP pleated high flow filter is constructed with 6 inch (152 mm) large diameter which offers super high flow rate, it can greatly save water treatment plant footprint and reduce filter change-out cost.

Inside-out flow operation keeps all the contaminants inside the filter thus making ment process more convenient.

Available filter media s polypropylene and microfiber glass with pore size from 0.5μm to 100μm. PFI HFCP series provides a more cost-effective solution to PP Watermaker high flow filters.

Features of High Flow Filter Cartridges

·         High contaminant holding capacity for long life

·         All materials of construction are FDA listed

·         Fewer cartridges for fewer change-outs, thus less labor and disposal cost

·         Thermally bonded ensure structure integrity and no additives

·         Heavy wall core offers superior strength

·         Integrated handle makes change out fast, easy and safe

·         Inside-to-outside flow traps particulate within filter

·         External netting for additional support

·         Compatible with most brand standard high flow filter housings.

Product Specifications

Media/Support/Cage: Polypropylene

End caps: Polypropylene

O-rings: EPDM, Silicone, Buna-N, Viton

Micron ratings: 1 – 100 μm

Dimensions

Nominal lengths : 20", 40", 60"

Outside diameter : 6.0" (15.2 cm)

Surface area:

24 ft 2. (2.2 m2) per 20" element

49 ft 2. (4.6 m2) per 40" element

73 ft 2. (6.8 m2) per 60" element

Operating Parameters

Maximum operating temperature:

77°F @ 50 psid (25°C @ 3.4 bar)

Recommended changeout differential pressure: 35 psid (2.4 bar)

Maximum flow rates :

·         60" element up to 500 GPM (1892 lpm)

·         40" element up to 350 GPM (1325 lpm)

·         20" element up to 175 GPM (662 lpm)

Untuk permintaan penawaran HFCP-A25-40E High Flow Filter Cartridge silahkan hubungi
