Product Description

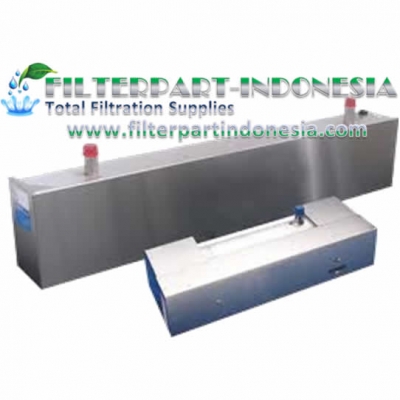

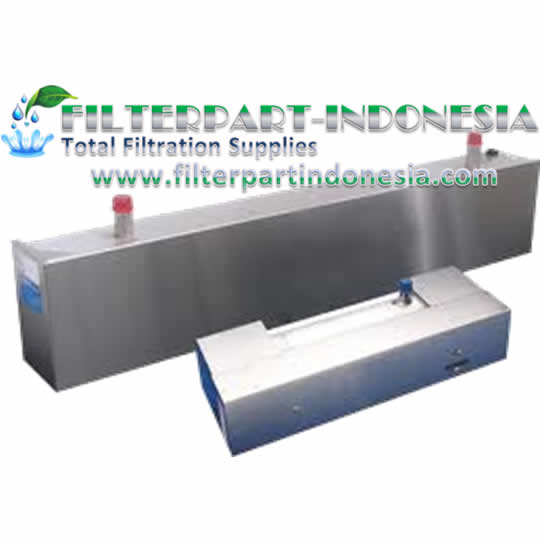

The Aquafine DW-8 UV system is for use with clear, fresh water which is not visibly contaminated and which does not have an obvious contamination source is acceptable for the DW. Aquafine recommends contacting a local water treatment company for expert on-site analysis and installation of appropriate pretreatment equipment if necessary. Surface water treatment will the additional protection of cyst-removal filters. Professional consultation will insure that your system provides comprehensive filtration as well as disinfection.

Units can be mounted either vertically or horizontally depending on available space. The DW-8 s approximately 36 inches to the right for periodic servicing of the quartz sleeve and UV lamp. Effectiveness of UV lamp output will naturally decline with time. Annual lamp ment is typically d, along with periodic cleaning of the quartz sleeve (frequency is dependent upon water quality). Refer to the owner''s manual for details. The 120 VAC/60 Hz (standard U.S.power supply) DW-8 model is UL listed. The 240 VAC/50 Hz DW-8 model is CE listed.

Flow Capacity: 10 GPM

Clear Fresh Water: 2.3 m3/hr

No. of UV Lamps: 1

UV Dosage Seconds / cm2: >30,000

Maximum Operating Pressure: 120 psig (8.3 bar)

Test Pressure: 180 psig (12.4 bar)

Pressure Drop: <2psig (<0.14 bar)

Water Temperature Range: 35 degrees F to 100 degrees F (2 degrees C to 38 degrees C)

Ambient Temperature Range: 33 degrees F to 110 degrees F (1 degrees C to 43 degrees C)

Chamber Material: 304/316L SS Passivated

Cabinet Material: Blue Powder Coat Cold-Rolled Steel

Inlet/Outlet Size: 3/4" Male NPT

Drain Port: 1/4" NPT

Total Current @ 120 (240) VAC: .51 Amps (.27)

Total Power @ 120 (240) VAC: 61 Watts(65)

Power Requirements: 120VAC/60Hz/1ph or 240VAC/50Hz/1ph

UV Lamp LED Visual Verification Lamp is "ON": Standard

Overall Dimensions (L x W x H) Inches (cm): 38 x 5 x 10 (94 x 12 x 25)

Shipping Weight: 42 lbs (19 kg)

Shipping Size: 6.1 ft3(.17 m3)
